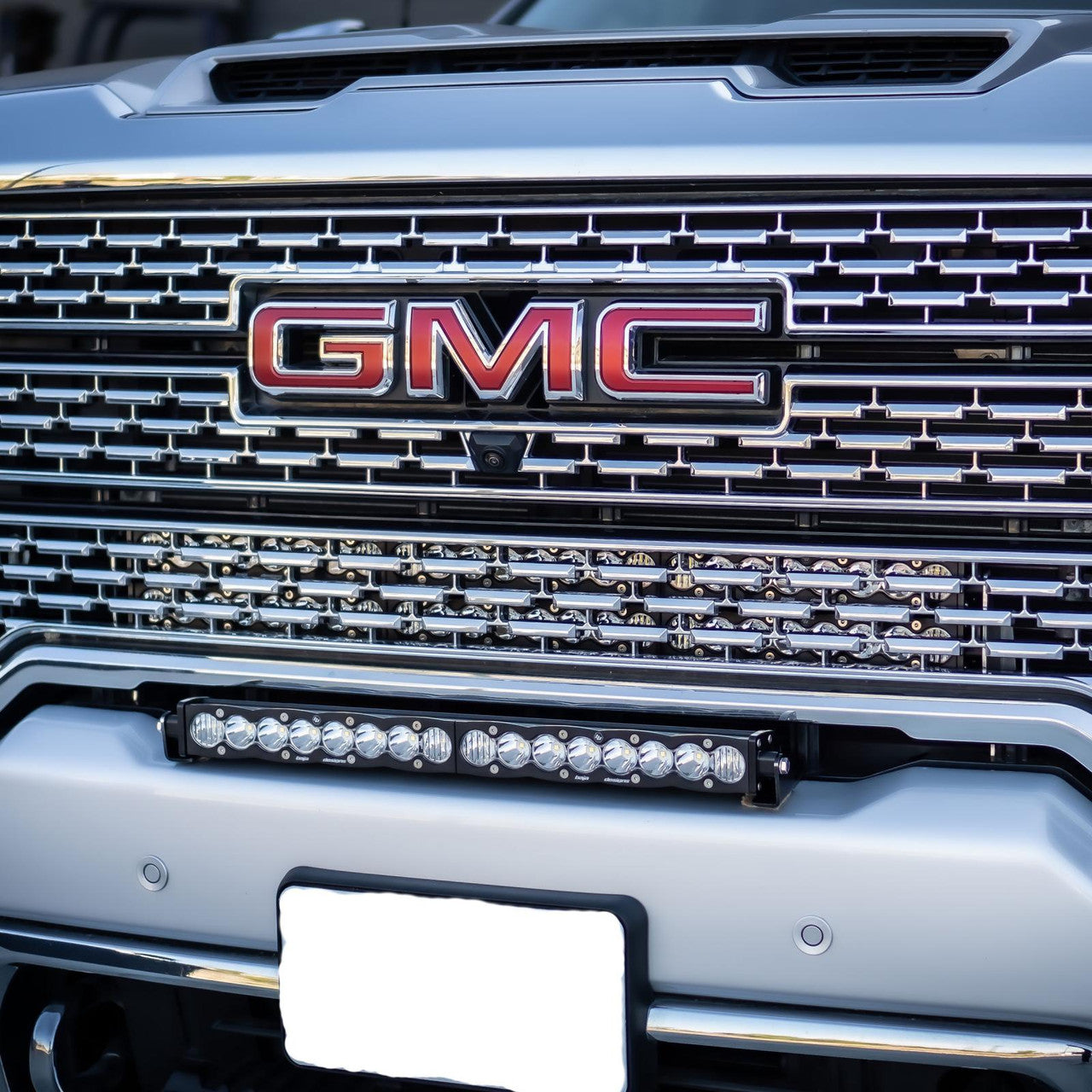

BAJA DESIGNS GMC S8 DUAL 30" GRILL LIGHT BAR KIT – 2020-23 GMC 2500HD/3500HD
May have applicable lead time. Direct ships from Manufacturer

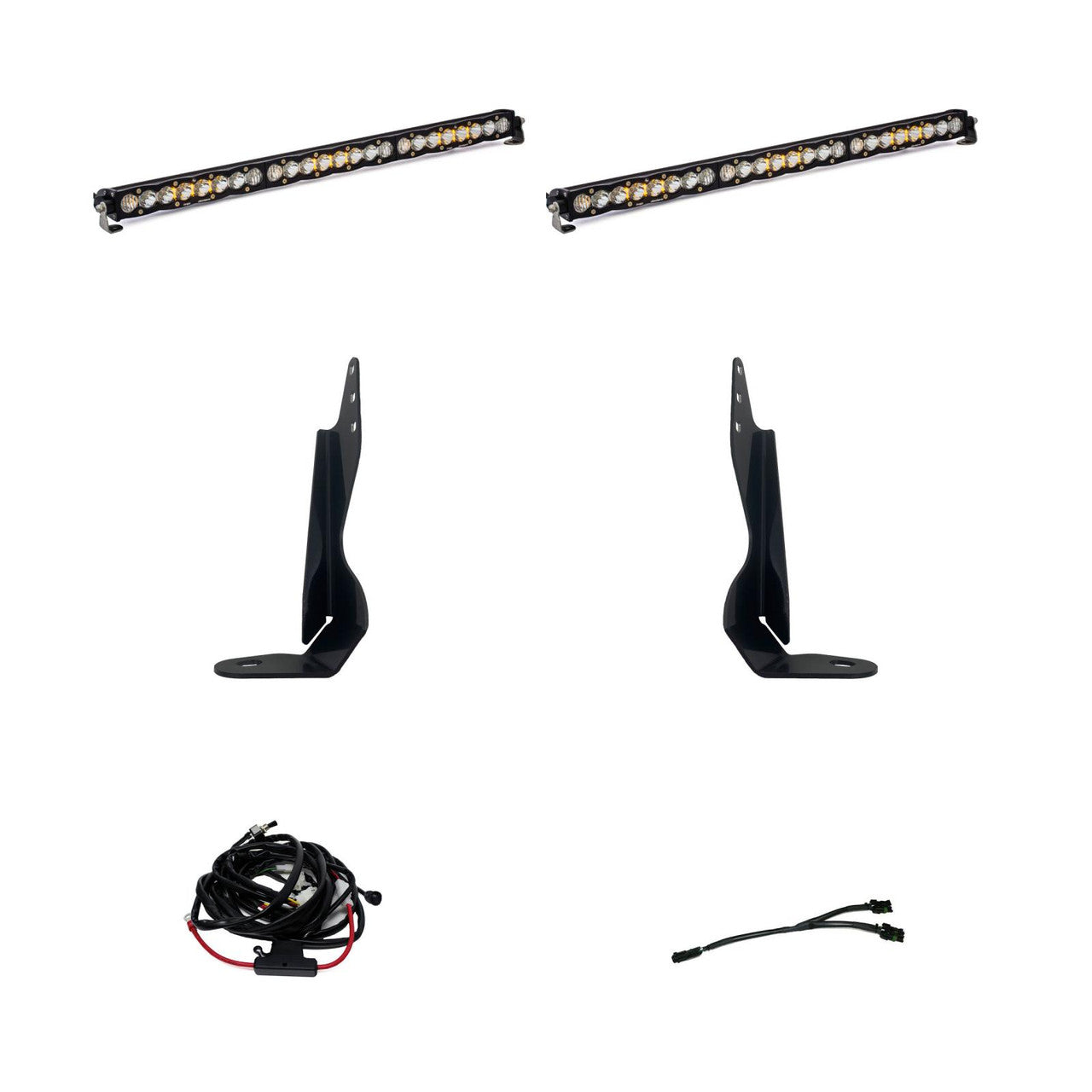

This is a turn key solution for anyone that is interested in serious lighting performance with styling in mind. This Dual S8 behind the grill kit will provide you with over 38,000 lumens and an amber backlit feature without cutting or drilling. This kit will include a wiring harness, 3-pin splitter, and amber backlit fuse tap kit. This combination will enable users to tap into their vehicle’s ignition which will automatically trigger the amber backlit LEDs. This attractive safety feature is pleasing to the eye, while drawing minimal amps and keeping you visible while out on the trail.
This kit does not fit the GMC AT4 model due to grill being different.
Specifications
| Product Type | S8 30 Inch LED Light Bar |
| Description | Driving/Combo; Clear |
| Beam Pattern | Driving/Combo |
| Lens Color | Clear |
| Lighting Modes | Beam/Amber Backlit Feature |
| Light Quantity | 1 |
| Lighting Type | Forward Projecting |
| Lighting Technology | Cree LED |
| Lighting Quantity | 24 |
| Brightness (Lumens) | 19,050 |
| Wattage (W) | 180 |
| Amperage Rating (A) | 12.0 |
| Average Rated Life (hr.) | 49,930 |
| Housing Color | Black |
| Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
| Lens Material | Hardcoated Polycarbonate |
| Bezel Material | Billet Machined Aluminum |
| Mounting Hardware Included | Yes |
| Mounting Hardware Description | Mounting Brackets |
| Mounting Hardware Material | Stainless Steel |
| Wiring Harness Included | No |
| Overvoltage Protection | Built-In |
| Universal or Specific | Universal |
Dimensions
| Length (in.) | 30 |
| Height (in.) | 1.6 |
| Depth (in.) | 3 |
| Weight (lbs.) | 6.5 |
Standards & Compliance
| Patent No. | D780,964 |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
