BAJA DESIGNS FORD S8 20" BUMPER LIGHT KIT – FORD 2011-16 F250/350 SUPER DUTY
May have applicable lead time. Direct ships from Manufacturer
Description
Set your Ford Super Duty apart from the rest with some Baja Designs LED Light Bars. Our Ford LED Light Bar Mount Kit has been specifically designed for Super Duty models giving you that clean OEM look. The 20-inch S8 bar emits 12,700 brilliant lumens via 16 Cree LEDs. All with a low amp draw to put less strain on your battery. The S8 also features a backlit feature that stands out in the dark.
A clean aluminum frame with scalloped housing, machined aluminum bezel, and stainless steel hardware protects the circuity from water or debris. The LEDs last nearly 50,000 hours while being fully waterproof and exceeding mil-spec testing for reliability.

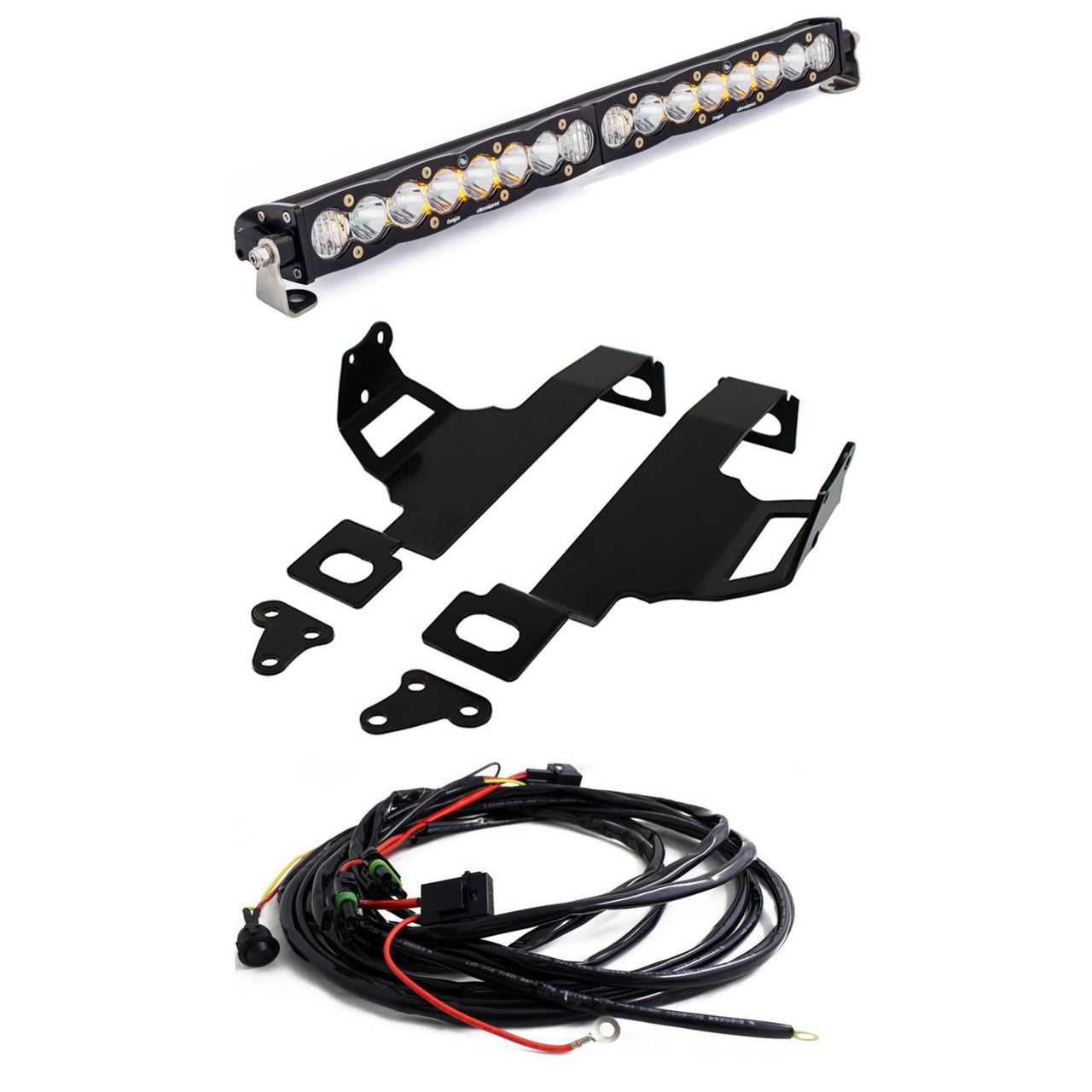

This mount kit allows for easy installation of a 20-inch S8 LED Light Bar. Also included is a wiring harness that allows you to use a separate auxiliary switch.
Specifications
| Product Type | S8 20 Inch LED Light Bar |
| Description | Driving/Combo; Clear |
| Beam Pattern | Driving/Combo |
| Lens Color | Clear |
| Lighting Modes | Beam/Amber Backlit Feature |
| Light Quantity | 1 |
| Lighting Type | Forward Projecting |
| Lighting Technology | Cree LED |
| Lighting Quantity | 16 |
| Brightness (Lumens) | 12,700 |
| Wattage (W) | 120 |
| Amperage Rating (A) | 8.0 |
| Average Rated Life (hr.) | 49,930 |
| Housing Color | Black |
| Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
| Lens Material | Hardcoated Polycarbonate |
| Bezel Material | Billet Machined Aluminum |
| Mounting Hardware Included | Yes |
| Mounting Hardware Description | Mounting Brackets |
| Mounting Hardware Material | Stainless Steel |
| Wiring Harness Included | No |
| Overvoltage Protection | Built-In |
| Universal or Specific | Universal |
Dimensions
| Length (in.) | 20 |
| Height (in.) | 1.6 |
| Depth (in.) | 3 |
| Weight (lbs.) | 4.5 |
Standards & Compliance
| Patent No. | D780,964 |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
