BAJA DESIGNS FORD ONX6+ 20" BUMPER LIGHT KIT – FORD 2011-16 F250/350 SUPER DUTY
May have applicable lead time. Direct ships from Manufacturer
Description

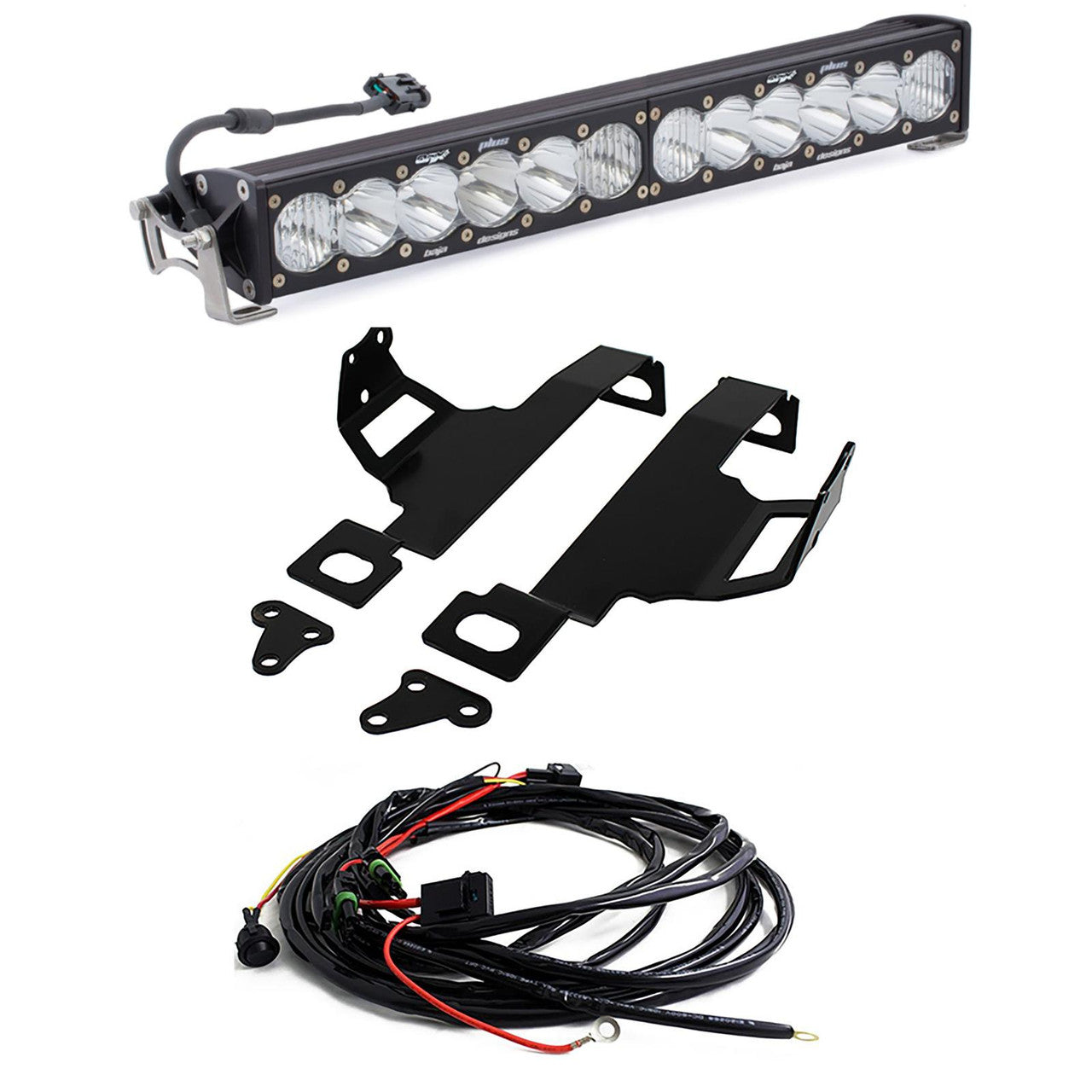

Set your Ford Super Duty apart from the rest with some Baja Designs LED Light Bars. Our Ford Light Bar Mount Kit is for Super Duty models giving you that clean OEM look. This mount kit allows for easy installation of a 20-inch OnX6 LED Light Bar. This mount kit also comes equipped with a wiring harness that allows you to use a separate auxiliary switch.
Specifications
| Product Type | OnX6+ 20 Inch LED Light Bar |
| Description | Straight; Driving/Combo; Clear |
| Beam Pattern | Driving/Combo |
| Lens Color | Clear |
| Lighting Modes | High Beam/Low Beam |
| Light Quantity | 1 |
| Lighting Type | Forward Projecting |
| Lighting Technology | LED |
| Lighting Quantity | 12 |
| Brightness (Lumens) | 24,920 (High); 18,460 (Low) |
| Wattage (W) | 216 (High); 160 (Low) |
| Amperage Rating (A) | 16.6 (High); 12.0 (Low) |
| Average Rated Life (hr.) | 49,930 |
| Housing Color | Black |
| Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
| Lens Material | Hardcoated Polycarbonate |
| Bezel Material | Billet Machined Aluminum |
| Mounting Hardware Included | Yes |
| Mounting Hardware Description | Mounting Brackets |
| Mounting Hardware Material | Stainless Steel |
| Wiring Harness Included | No |
| Wiring Harness Description | Hi-Low Dongle |
| Overvoltage Protection | Built-In |
| Universal or Specific | Universal |
Dimensions
| Length (in.) | 20 |
| Height (in.) | 2.69 |
| Depth (in.) | 4.29 |
| Weight (lbs.) | 7.85 |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
