BAJA DESIGNS RAM SQUADRON SAE FOG POCKET LIGHT KIT – RAM 2010-18 2500/3500
May have applicable lead time. Direct ships from Manufacturer
Description
Brand new for Baja Designs is our SAE-certified light. Based off of our Squadron series, many visual characteristics stayed the same. However, the pattern and circuitry are optimized giving our SAE light a street-legal punch! These lights penetrate the darkness and improve visibility in fog and poor weather conditions. LED technology is far superior to traditional halogen bulbs, using less energy for brighter light, and capable of shining for up to ten times longer.

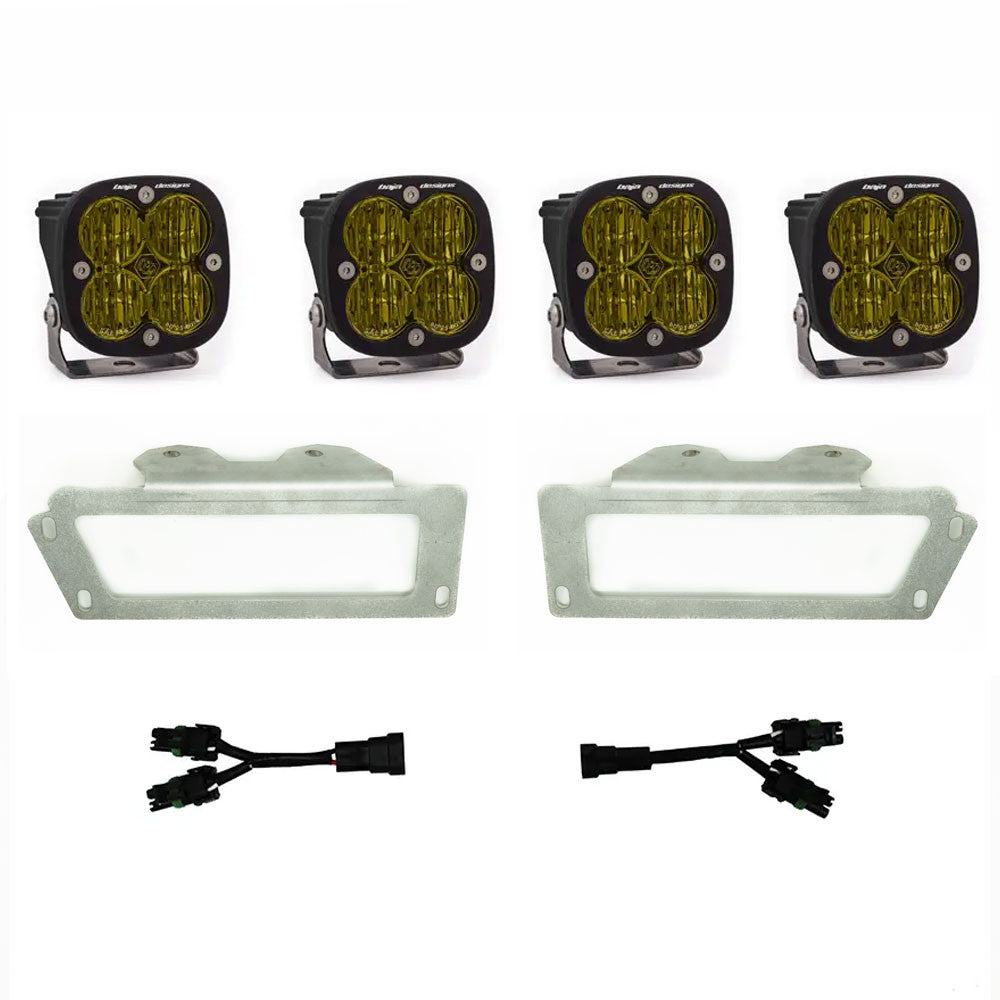

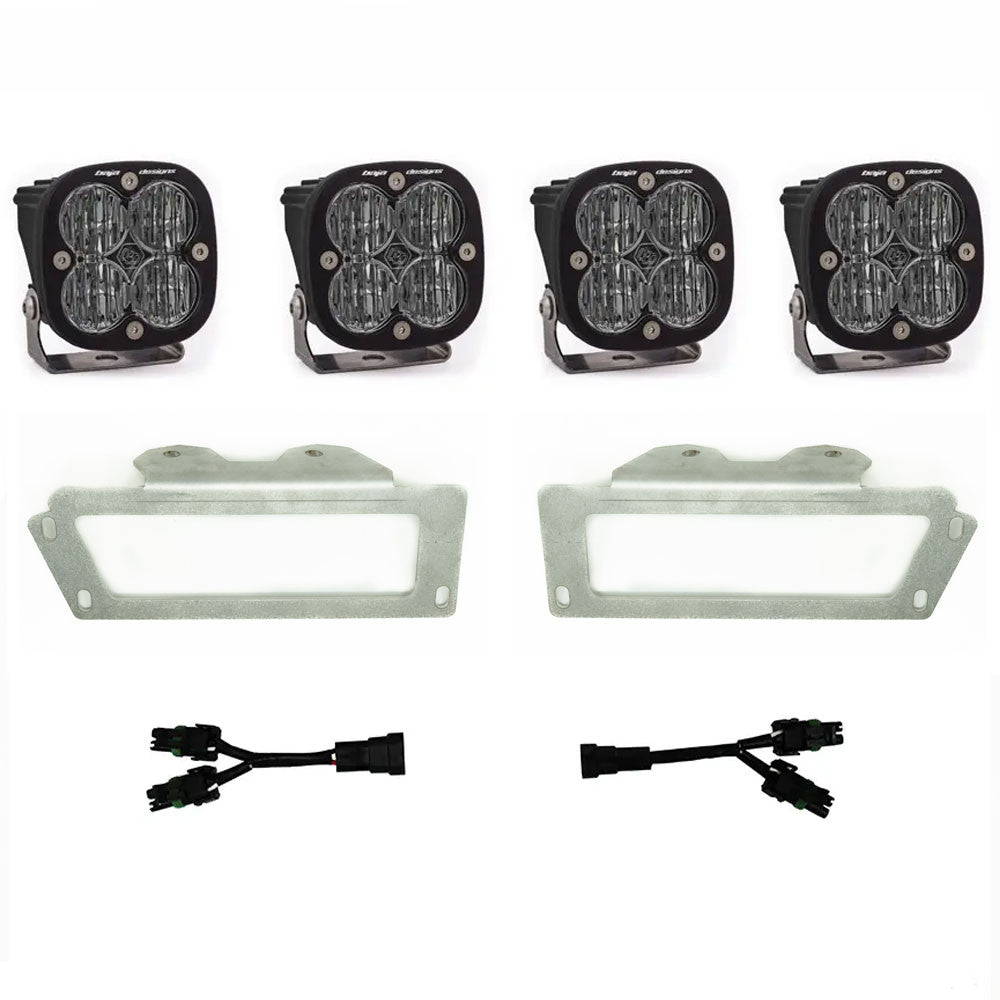

Our LED driving lights offer bold, bright lighting for long-distance visibility on remote highways and trails for safer nighttime driving. Factory tested and user approved, these lights are a serious upgrade from most LED, HID, and Halogen factory fog lights. This kit includes vehicle-specific brackets for the listed trucks below.
Specifications
| Product Type | Squadron SAE LED Light Pod Pair w/ Wiring Harness |
| Description | Wide Cornering; Clear; Pair |
| Beam Pattern | Wide Cornering |
| Lens Color | Clear |
| Lighting Modes | Beam |
| Light Quantity | 2 |
| Lighting Type | Forward Projecting |
| Lighting Technology | Cree LED |
| Lighting Quantity | 4 |
| Brightness (Lumens) | 2,480 |
| Wattage (W) | 22 |
| Amperage Rating (A) | 1.6 |
| Average Rated Life (hr.) | 49,930 |
| Housing Color | Black |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Lens Material | Hardcoated Polycarbonate |
| Bezel Material | Billet Machined Aluminum |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Wiring Harness Included | Yes |
| Overvoltage Protection | Built-In |
Dimensions
| Length (in.) | 3.07 |
| Height (in.) | 3.07 |
| Depth (in.) | 2.77 |
| Weight (lbs.) | 0.75 |
Standards & Compliance
| Street Legal | Yes |
| DOT Approved | Yes |
| Standards/Compliance (SAE) | SAE Standard J583 |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
