BAJA DESIGNS CHEVY SQUADRON SAE FOG POCKET LIGHT KIT – 2020-23 CHEVY 2500HD/3500HD
May have applicable lead time. Direct ships from Manufacturer

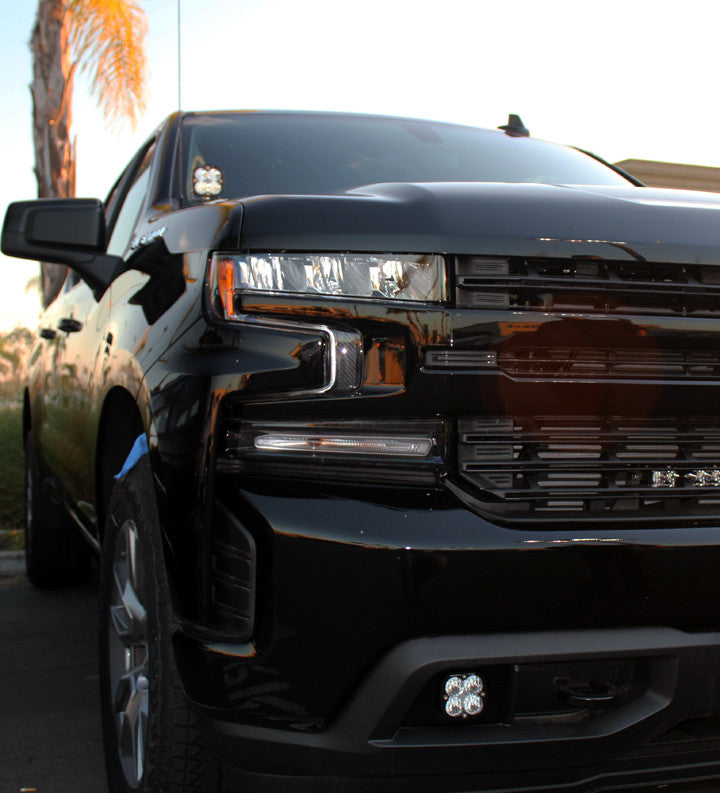

Our 2019 Silverado Fog Pocket replacement kit allows enthusiasts to retain factory fit and finish, while taking advantage of premium aftermarket LED output. This kit features a pair of Squadron SAE, which have a combined output of 4,960 lumens. Squadron SAE from Baja Designs offers the same superior lighting and longevity as our LED off-road lights, optimized and approved for street use.
Our LED lighting system is crafted with high-quality components and produces color temperatures similar to daylight. These lights penetrate the darkness and improve visibility in fog and poor weather conditions. LED technology is far superior to traditional halogen bulbs, using less energy for brighter light, and capable of shining for up to ten times longer. Our LED driving lights offer bold, bright lighting for long-distance visibility on remote highways and trails for safer nighttime driving.
Installing the kit can’t be any easier. Our durable brackets use your stock mounting points for a clean look. The provided wire adapters plug right into your OEM connectors, allowing you to use your fog light switch with no need for splicing or soldering.
Specifications
| Product Type | Squadron SAE LED Light Pod Pair w/ Wiring Harness |
| Description | Wide Cornering; Clear; Pair |
| Beam Pattern | Wide Cornering |
| Lens Color | Clear |
| Lighting Modes | Beam |
| Light Quantity | 2 |
| Lighting Type | Forward Projecting |
| Lighting Technology | Cree LED |
| Lighting Quantity | 4 |
| Brightness (Lumens) | 2,480 |
| Wattage (W) | 22 |
| Amperage Rating (A) | 1.6 |
| Average Rated Life (hr.) | 49,930 |
| Housing Color | Black |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Lens Material | Hardcoated Polycarbonate |
| Bezel Material | Billet Machined Aluminum |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Wiring Harness Included | Yes |
| Overvoltage Protection | Built-In |
Dimensions
| Length (in.) | 3.07 |
| Height (in.) | 3.07 |
| Depth (in.) | 2.77 |
| Weight (lbs.) | 0.75 |
Standards & Compliance
| Street Legal | Yes |
| DOT Approved | Yes |
| Standards/Compliance (SAE) | SAE Standard J583 |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
