BAJA DESIGNS CHEVY/GMC ONX6+ 20" BUMPER LIGHT BAR KIT – 2007-13 CHEVY/GMC 1500/2500HD/3500HD
May have applicable lead time. Direct ships from Manufacturer
Description

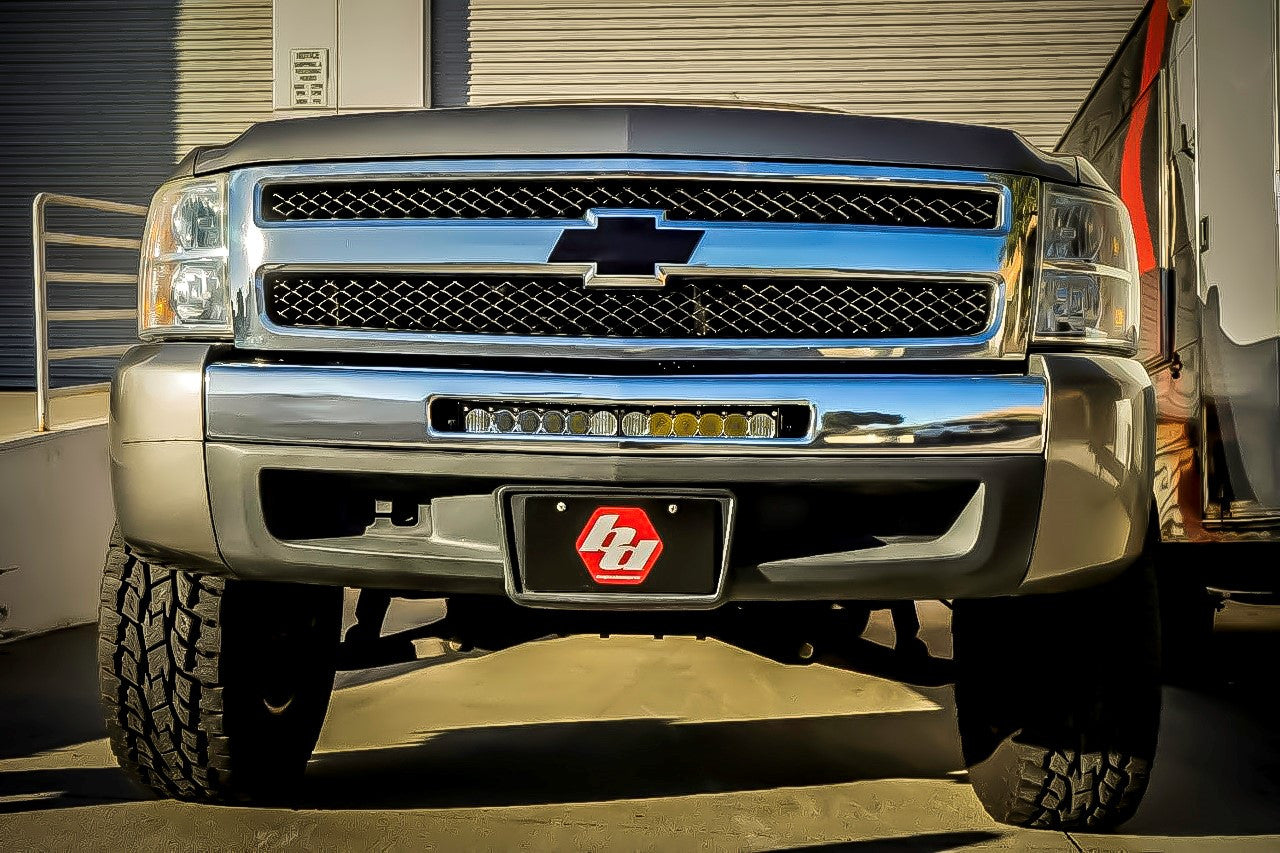

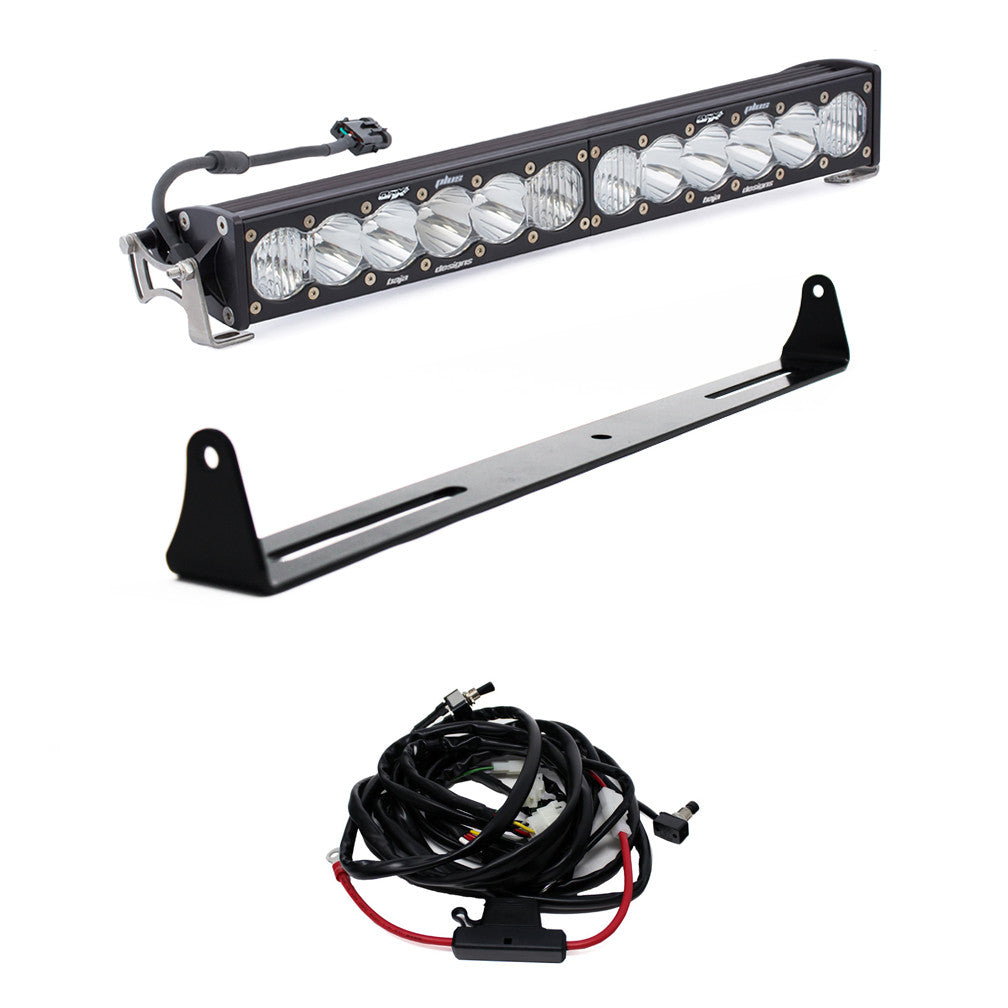

This OnX6+ 20-Inch Bumper Light Bar Kit is specifically designed for the 2007-2013 Chevy Silverado. You get a stylish and clean mounting solution to fill the gap of the stock bumper. This kit includes the whole package to get an OnX6 plus 20-inch on your truck. At an impressive 24,920 lumens, the brightest just got up to 69% brighter. We use Cree LEDs that last up to 50,000 hours and have a 5000K light temperature that mimics natural daylight for better trail recognition and less eye fatigue.
The OnX6+ LED light bar also integrates Baja Designs’ trademarked High Speed Spot reflector, the same one used by our Team Enlightened racers, to give you the guaranteed furthest projecting LED Light Bar on the planet. In addition, the OnX6+ LED light bar adopts industry-standard sizing and is now compatible with aftermarket mounting systems. An industry-first, 30-day Satisfaction Guarantee & Limited Lifetime Warranty is included for the ultimate in purchase protection.
This kit gives you the light you need when blasting out to campsites or blazing backgrounds, and creates an overall better driving experience for you.
Specifications
| Product Type | OnX6+ 20 Inch LED Light Bar |
| Description | Straight; Driving/Combo; Clear |
| Beam Pattern | Driving/Combo |
| Lens Color | Clear |
| Lighting Modes | High Beam/Low Beam |
| Light Quantity | 1 |
| Lighting Type | Forward Projecting |
| Lighting Technology | LED |
| Lighting Quantity | 12 |
| Brightness (Lumens) | 24,920 (High); 18,460 (Low) |
| Wattage (W) | 216 (High); 160 (Low) |
| Amperage Rating (A) | 16.6 (High); 12.0 (Low) |
| Average Rated Life (hr.) | 49,930 |
| Housing Color | Black |
| Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
| Lens Material | Hardcoated Polycarbonate |
| Bezel Material | Billet Machined Aluminum |
| Mounting Hardware Included | Yes |
| Mounting Hardware Description | Mounting Brackets |
| Mounting Hardware Material | Stainless Steel |
| Wiring Harness Included | No |
| Wiring Harness Description | Hi-Low Dongle |
| Overvoltage Protection | Built-In |
| Universal or Specific | Universal |
Dimensions
| Length (in.) | 20 |
| Height (in.) | 2.69 |
| Depth (in.) | 4.29 |
| Weight (lbs.) | 7.85 |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
