FACTOR 55 FLATLINK XXL

The world’s first foldable winch shackle mount with self centering load spool.

Compatible with wire rope diameters of up to 3/4″ and synthetic rope tube thimbles up to 5/8″ in diameter. Fits shackle pin diameters of 1 1/8″. 7/8″ diameter titanium double shear pin. Minimum breaking strength of 65,000 lbs.

FEATURES & SPECIFICATIONS:

• Replace conventional winch hooks with a safer more secure shackle/D-ring

• Safer recoveries through the practice of Closed System Winching

• Lightweight – Precision CNC machined 6000 series Military Grade Aluminum

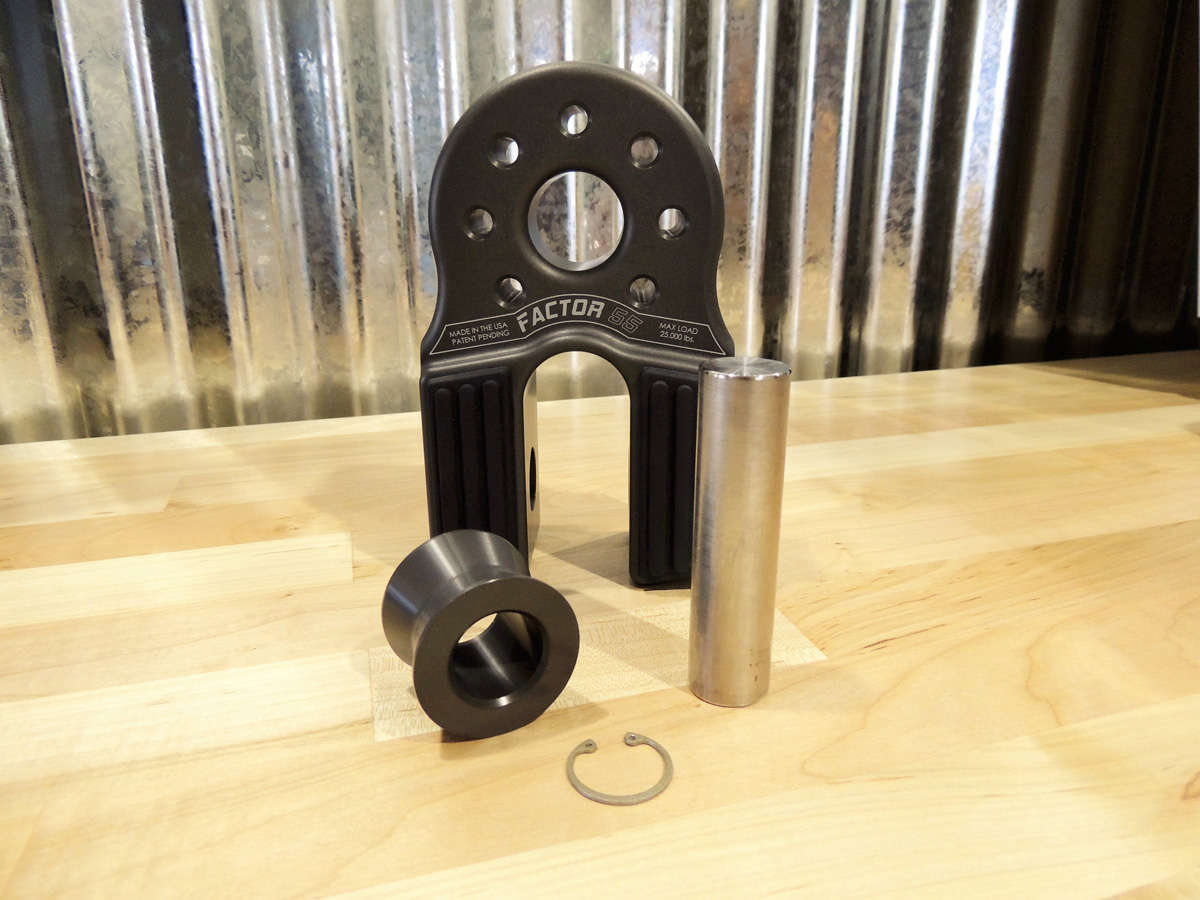

• No splicing required – double shear pin design

• Designed for both steel cable and synthetic winch rope eyes

• Equipped with a shear pin load centering spool for wire rope applications

• Foldable and stows rattle free against fairleads

• Integrated EPDM rubber pads for fairlead protection

• Fits common 7/8 and 1” screw pin shackle sizes (1.0 and 1.125 pin diameters)

• For synthetic rope diameters up to 5/8 and wire rope up to 1”

• Available in the Military Specification Hard Anodizing (Mil-A-8625 F Type III) Gray

• 7/8” diameter double shear pin

• Max Rated Load: 26,000 pounds

• Ultimate Strength: 68,000 pounds

• Weight: 53.4 lbs.

• Dimensions: 7.5 x 5 x 3 in.
