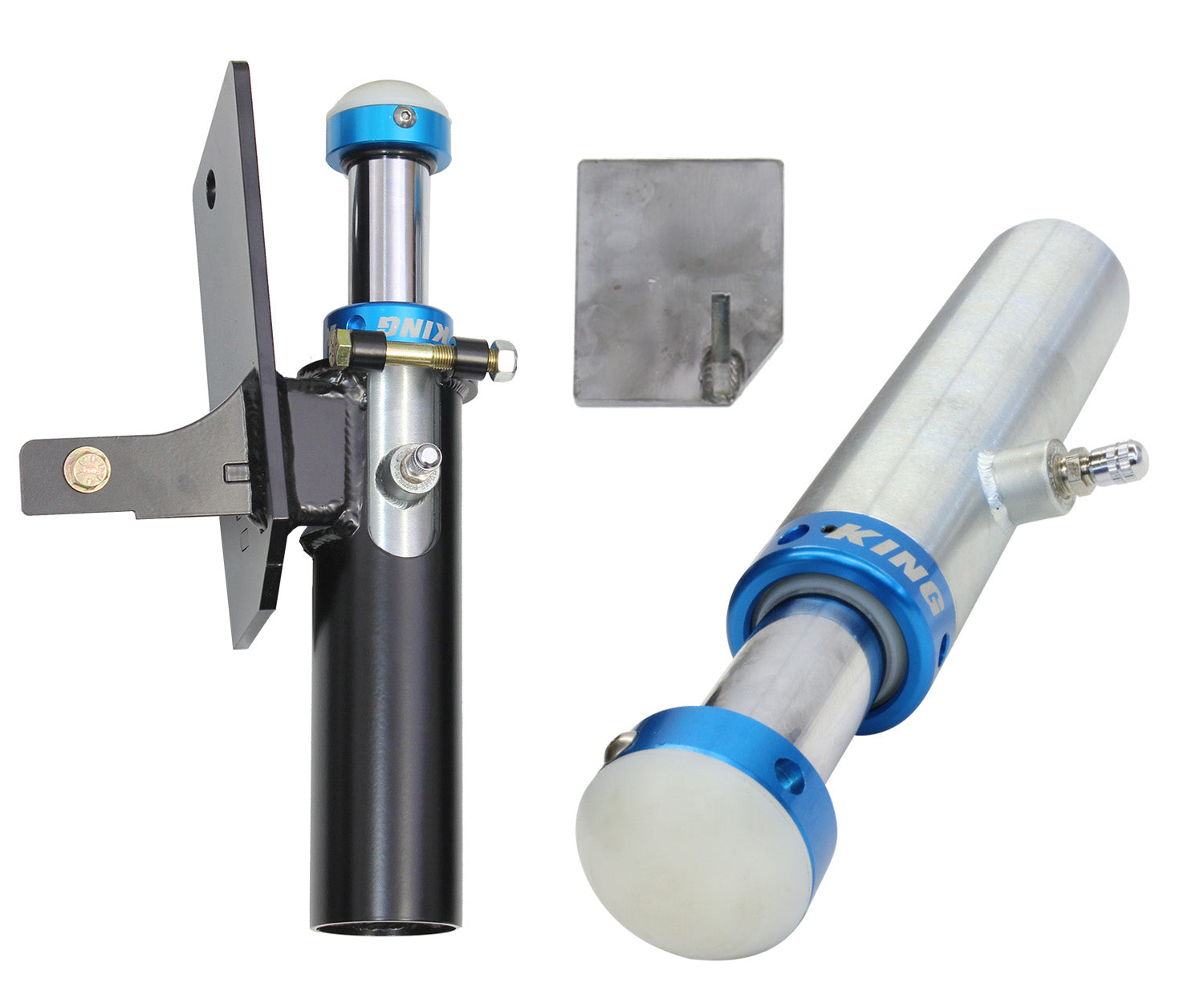

CARLI SUSPENSION 03-12 RAM 2500/3500 4X4 HYDRO-PNEUMATIC FRONT BUMP STOPS – 6″ LIFT
This is the FIRST hydraulic bump stop on the market for a Dodge Ram. Carli’s front bump stop kit does not reduce wheel travel. Only the final 2.5 of travel will utilize the bump stops. The bump stops act as a secondary suspension system. This system was designed to protect your truck from those unforeseen hits when pushing the limits of the suspension. All of the energy used to compress the bump stop is dissipated as heat thus preventing the suspension from bottoming out , leaving everything still in place on your dash. Also, the rebound of the bump stop is designed to extend at a slower rate which will keep from forcing the axle back up, which would cause the suspension to bounce back. By slowing down the last couple of inches of compression travel, you reduce the amount of stored energy that needs to be controlled on the rebound side. This will help maintain control of the vehicle when off-roading at speed.
– Engages the last 2.5″ of Travel Stroke
– Carli Specific, Inverted 2.0″ King Bump Stops
– Compatible with 6″ Front Lift
– Creates a position sensitive compression zone
– Requires Welding
– Fitment: 2003-12 Ram 2500/3500 4×4
